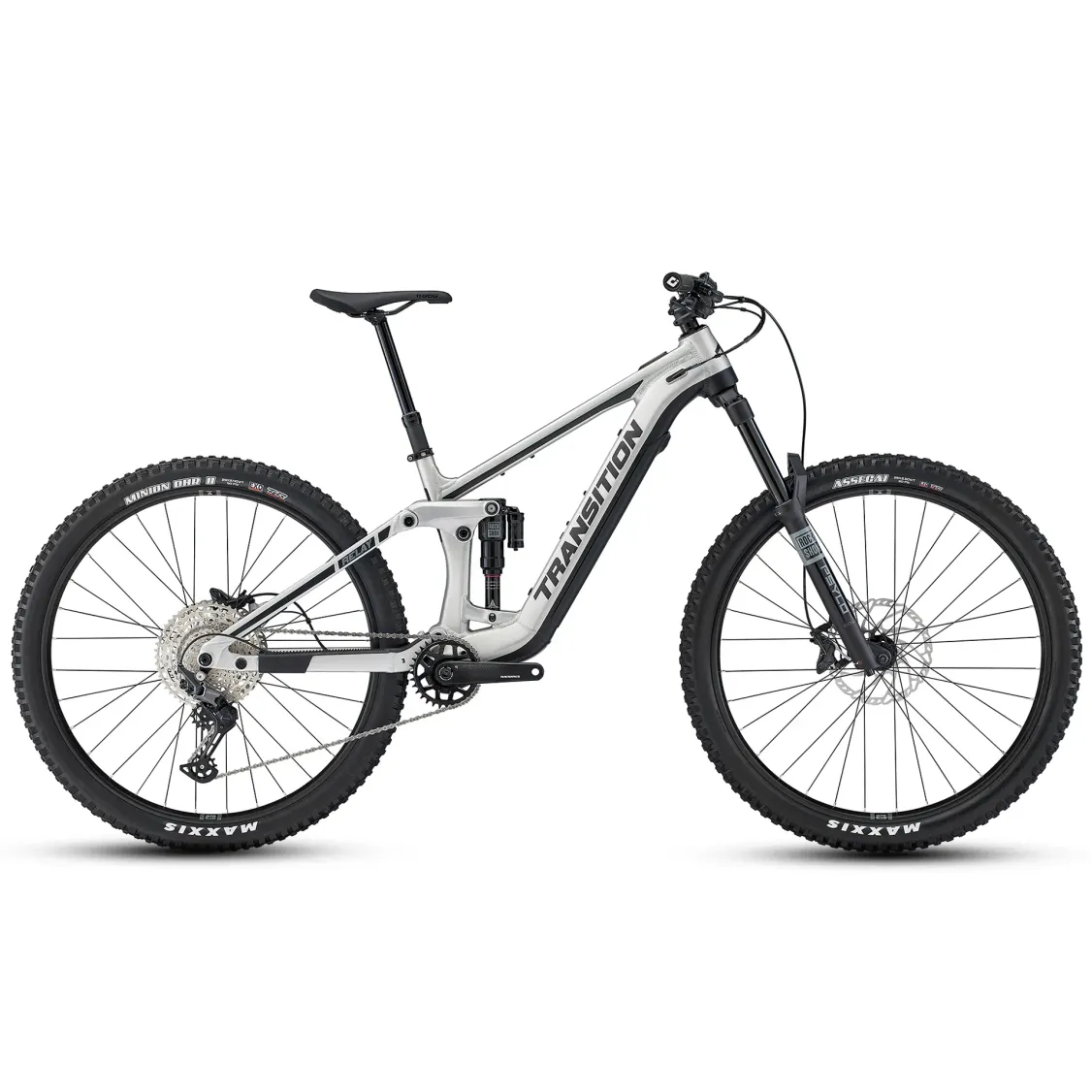

Relay

Living in uncharted territory, the Relay is a lightweight, long travel, modular mountain bike.

Transition team has always wanted a bike that could provide both an electric and non-electric experience in one chassis. The Relay is light, efficient, and quiet. This provides a more intuitive and natural feel on trail than many would expect from an eMTB. The Relay is here and ready to meet all of your mountain biking needs. Going for a rip with friends on eMTB's? Power it up and head out. Going for a rip with some friends on mountain bikes? Simply remove the battery and hit the trail with no tools required. The Relay does it all!

Relay VS Relay PNW

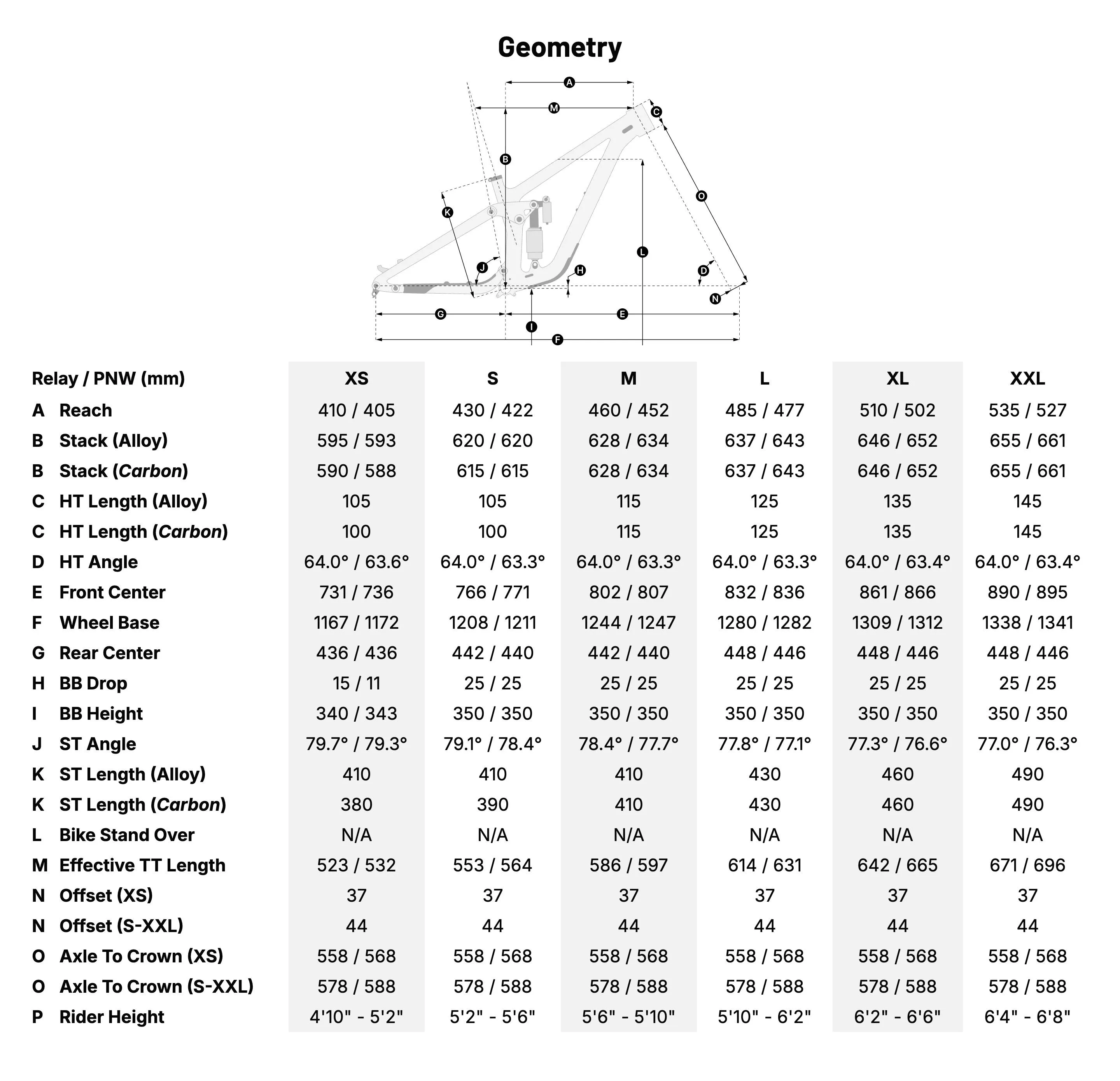

The Relay and Relay PNW share the same frame. The lower shock flip chip adjusts the geometry to compensate for a 27.5" or 29" rear wheel. Both Relay and Relay PNW have the ability to be run at 160 or 170mm travel front and rear, dual 29 or mixed wheel. Riders can choose the Relay with dual 29 and 160mm travel for a more lightweight, trail bike feel, or chase their burly trail dreams with the heavy hitting Relay PNW with 170mm travel and mixed wheels. The Relay is purpose built to be ridden hard and comes equipped with a component spec for doing so.

Fazua Motor & Battery

The minimal drag and power to weight ratio provide the magic when not riding with power. As you begin to ride beyond the speed cutoff you're not penalized when continuing to push beyond the assistance like that of traditional eMTBs. The 430Wh battery, 60Nm torque, 250 watts continuous power, 450 watts peak power, and overall bike weight work harmoniously together. This all equates to an experience that exceeds what you might expect from its numbers.

More Features

• Full of modularity, the Relay can be ridden with the battery installed and powered, or removed, which transforms it into a regular MTB
• The flip chip adjust the geometry according to what rear wheel size is installed
• Tire clearance up to 2.6"
• All Relay frames come equipped with a gear accessory mount on the underside of the top tube
• PNW models come with a forged spider bashguard that keeps the chain, chainring, and frame safe from impacts
• Fully internal cable routing
• Long dropper insertion
• Coil and air shocks compatible
• SRAM's universal derailleur hanger

Bike Weight

• Alloy Deore — 22.07kg (M, Including Battery) // 19.80 kg (M, Excluding Battery)
• Alloy GX PNW — 22.40kg (M, Including Battery) // 20.13kg (M, Excluding Battery)
• Carbon GX — 19.55kg (M, Including Battery) // 17.28kg (M, Excluding Battery)
• Carbon GX PNW — 20.21kg (M, Including Battery) // 18.00 kg (M, Excluding Battery)
