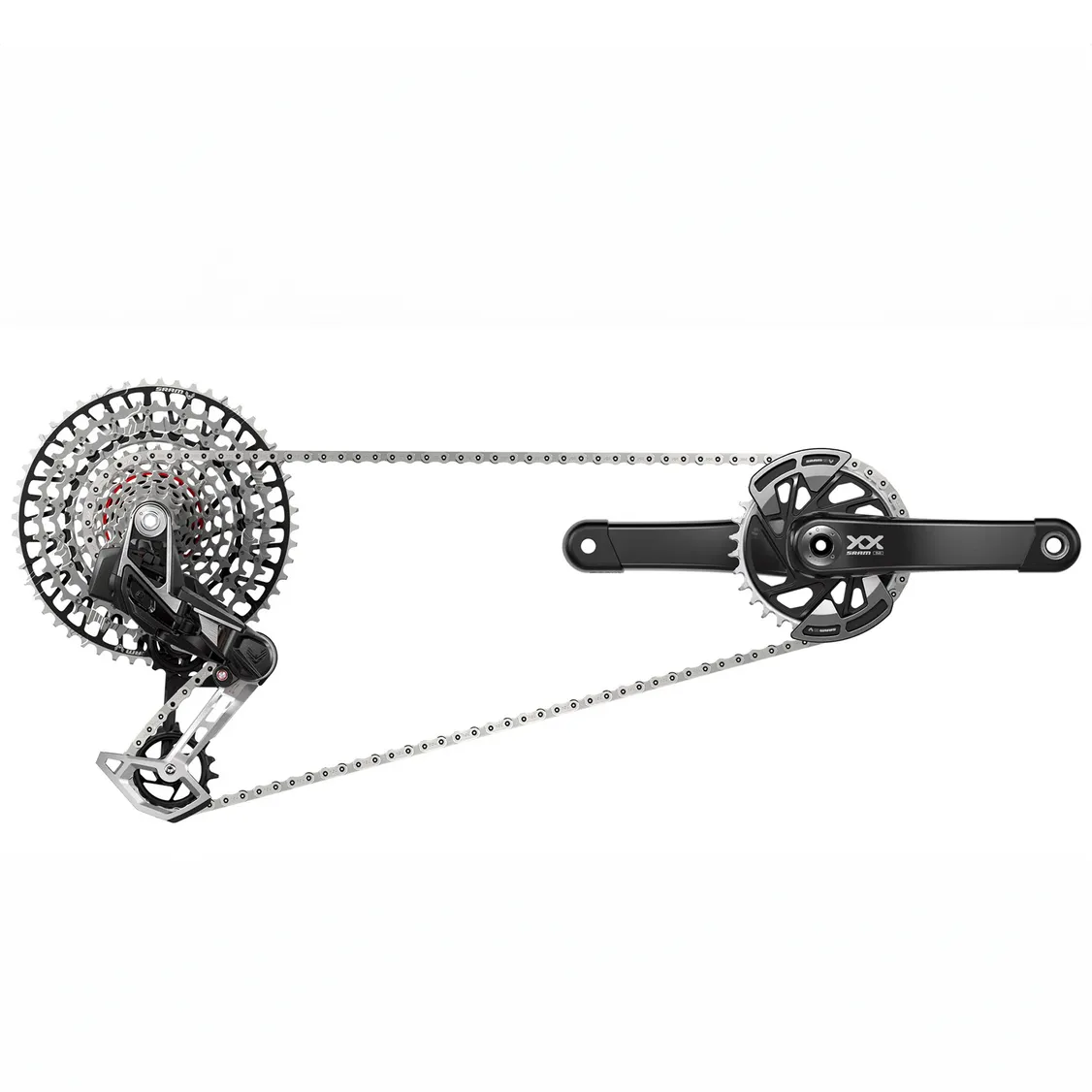

Designed for modern enduro and trail bikes, this wireless Transmission groupset delivers smooth, precise shifting under load with a fully synchronized drivetrain. X-SYNC cassette technology, a durable Flattop chain, and a precision AXS derailleur ensure confident performance, while DUB cranks with T-Type compatibility and the customizable AXS Pod controller complete a clean, race ready setup.

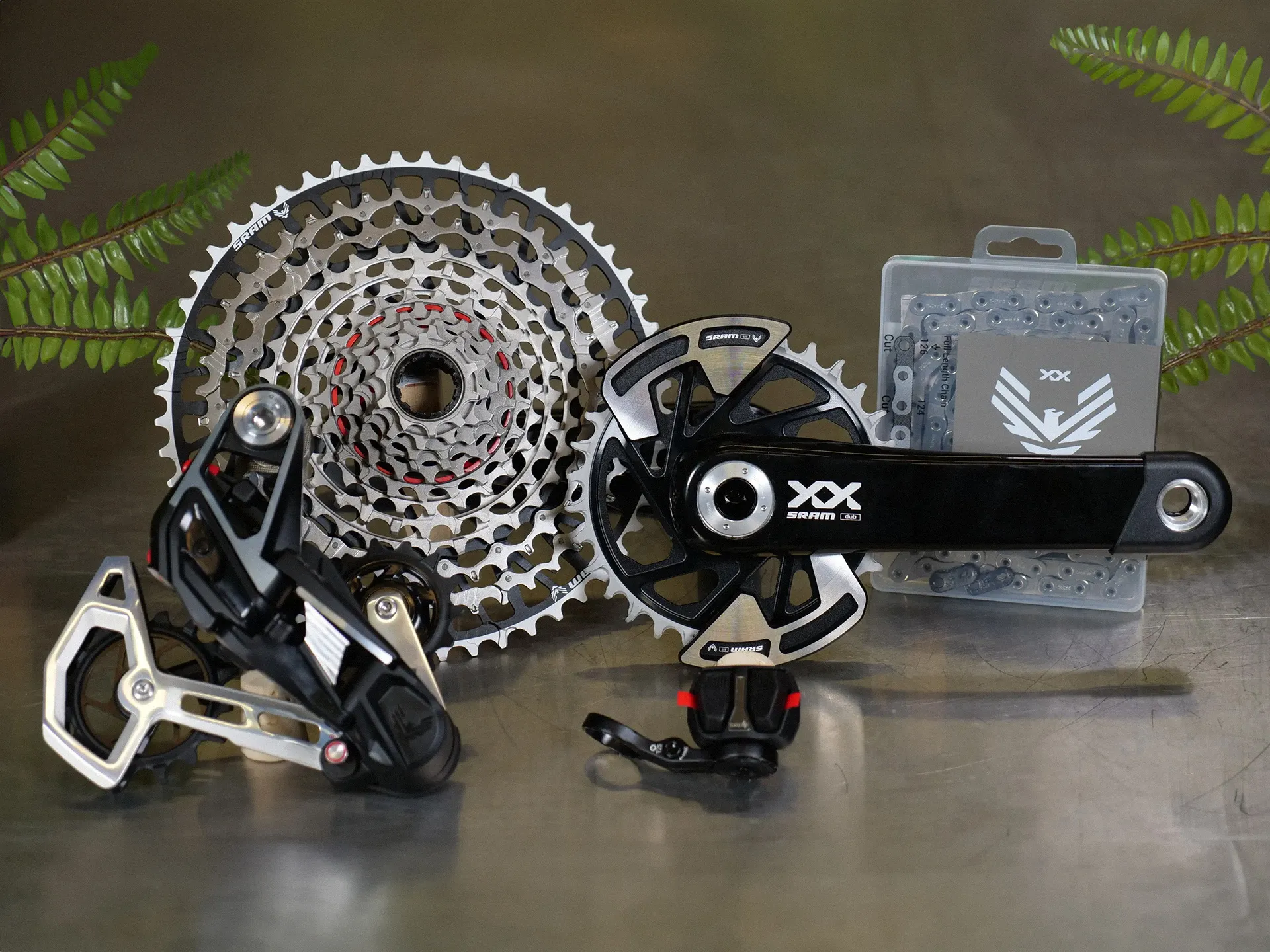

Components Included

• XX Eagle Crankset

  Carbon fiber crankarms with foam core for exceptional strength and stiffness
• Lightweight DUB design proven at World Cup and EWS level
• T-Type direct mount chainring compatibility for precise Transmission performance
• Removable and replaceable bash guard system for added protection
• Striking, modern design that stands out on premium builds

Specs

• Crank arm length: 165mm // 170mm // 175mm
• Speeds: 12, 12s T-Type
• Chainline: 55mm
• Chainring: 32T DM
• BB Spindle Interface: DUB
• Weight: 560g (170mm)
• SRAM Model ID: FC-X0-D1
• XX Eagle Transmission Derailleur

  Full Mount hangerless design for maximum strength and precise alignment
• T-Type integration with the cassette for smooth shifting under load
• Low-profile body with replaceable skid plates for durability
• Magic Wheel lower pulley keeps spinning through debris
• Overload clutch with simple AXS setup

Specs

• Speed (RD): 12
• Max tooth: 52
• Cage material: Aluminum
• Drivetrain Configuration: 1x
• Chain Technology: T-Type
• Weight: 450g (including Battery)
• SRAM Model ID: RD-XX-E-B1
• XS-1297 Eagle Transmission Cassette

  Full X-SYNC T-Type design for precise shifting under load
• Integrated cassette and derailleur interface for perfect alignment
• 520 percent gear range with improved low-end progression
• Reduced chain angles for longer wear and higher efficiency
• Clearly marked Setup Cog for fast, foolproof installation

Specs

• Speed (CS): 12
• Gearing: 10-52t: 10,12,14,16,18,21,24,28,32,38,44,52
• Chain Technology: T-Type
• Rear Derailleur Mount: Full Mount
• Weight: 385g
• SRAM Model ID: CS-XS-1297-A1
• XX Eagle Transmission Flattop Chain

  T-Type Flattop design for maximum strength and precise shifting
• Strongest Eagle chain engineered for Transmission drivetrains
• Hollow pin construction for reduced weight without sacrificing durability
• High durability chrome finish for long wear and a premium look

Specs

• Speed (CN): 12
• Chain length: 126 links
• Chain connector: PowerLock 12s T-Type BLK PVD
• Inner link finish: Chrome Hardened
• Outer link finish: Nickel
• Pin variant: Hollow Pin
• Chain Technology: T-Type
• Weight: 247g (114links)
• SRAM Model ID: CN-TTYP-XX-A1
• AXS Pod Ultimate Controller

  Lighter weight, better and more adaptable ergonomics, superior adjustability, premium finish
• All-new “Click and fire” two-button design. Intuitive and straight forward action requiring the ideal amout of rider input
• Interchangeable convex and concave touchpoint buttons for a personalized feel
• Personalization options for action designation through the AXS App

Specs

• Default Function: AXS - Rear Derailleur
• Clamp: Discrete
• Multi-position: Yes
• Battery size: CR2032
• SRAM Model ID: EC-AXS-PODU-D1
• AXS Battery

  Charges in 60 minutes or less
• Lightweight (24g) and easy to transport
• Same battery design for all AXS™ components and original SRAM RED® eTap®

Specs

• SRAM Model ID: EP-EAC-BAT-A1
• AXS Battery Charger

  Easy and fast charging for your SRAM batteries
• A full charge takes up to 60 minutes to complete

Specs

• SRAM Model ID: EP-EAC-BC-A1

Technology

AXS

AXS is SRAM’s new bike component integration system that connects electronic bicycle components and software. The SRAM AXS app allows riders to see battery status, change component behavior, personalize controls, get maintenance reminders, and update firmware.

X-SYNC

SRAM X-SYNC 1x chainrings provide the highest level of performance and durability. The SRAM X-SYNC tall square teeth edges engage the chain earlier than traditional triangle shaped teeth. The sharp and narrow tooth profile, as well as rounded chamfer edges, help manage a deflected chain. To provide the best possible performance in muddy conditions, the X-SYNC chainrings have been designed with mud-clearing recesses for the inner chain links and rollers. Engineered in Germany, X-SYNC rings are an integral part of the SRAM 1x drivetrain. Accept no imitation.

EALGE

Eagle technology represents our newest 1x drivetrain technology. Eagle is a lighter, simpler, more durable, and easier to use drivetrain. Eagle features all-new 1x components, engineered for even greater durability and performance while maintaining a significant weight advantage over other drivetrain solutions. Eagle technology also provides an expanded gear range of 520%, which is equal to 2x11 drivetrains.

X-DOME

X-DOME technology creates an incredibly lightweight, precise and strong cassette. The open design aids in mud clearance, giving you cleaner shifting performance and longer component life.

FLATTOP

To enable X-Range gearing technology, we developed a narrower chain. The unique link shape of Flattop technology not only allowed for a wider gear range, but also results in quieter drivetrain operation and increased chain strength and durability.

MatchMaker X INTEGRATED

The MatchMaker X clamp is more than just a clamp. It’s like having Martha Stewart tidy up your cockpit. Since each clamp accepts up to three controls, you can put everything from your XLoc suspension lockout, your SRAM shifters, SRAM brake levers and AVID brake levers as well as your Reverb XLoc remote, all on two clamps. Short of genetically engineering longer thumbs, it’s the ideal way to put everything within easy reach. Just like Martha would.

Specifications

• Tools: Not included
• SRAM Model ID: GS-XX-E-D1
