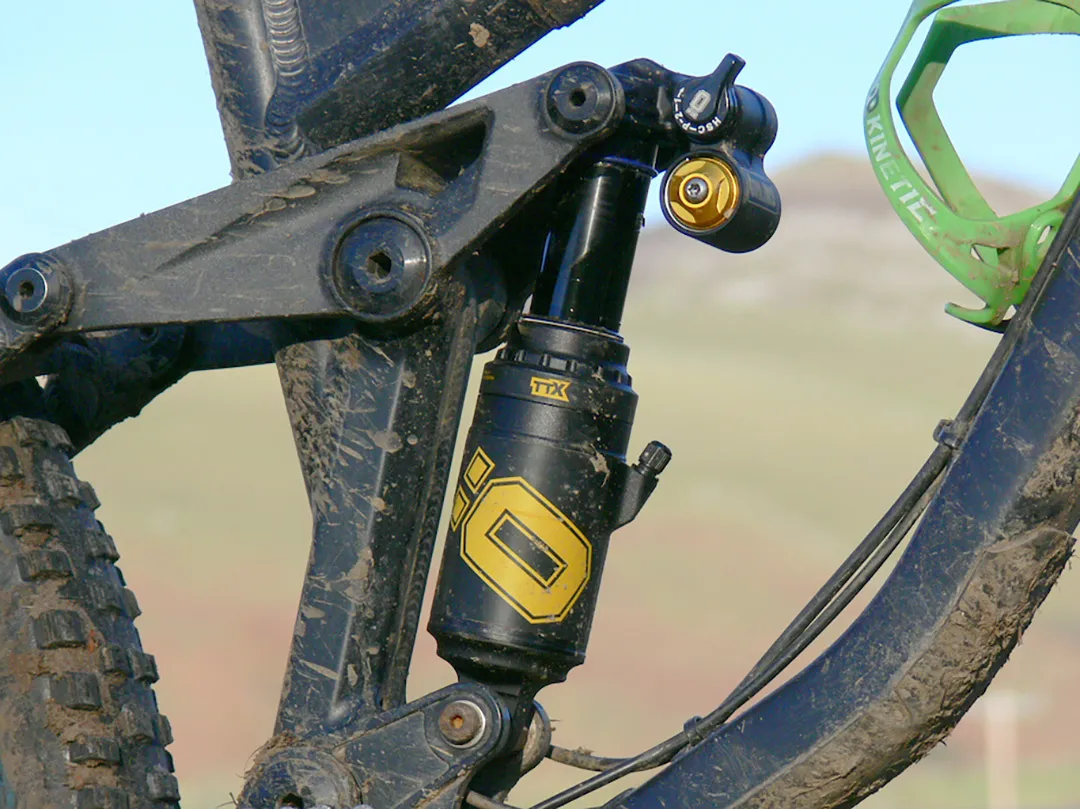

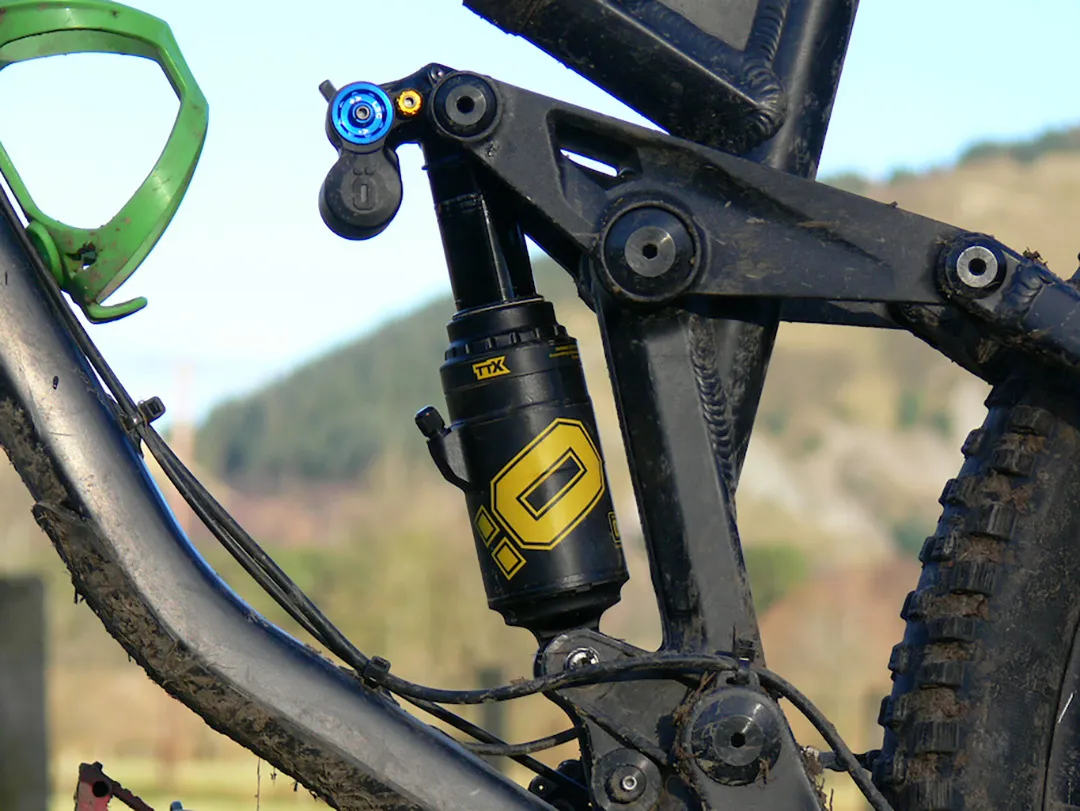

The TTX2 Air combines Öhlins twin-tube damping with a high-volume, double-can air spring designed for progressive suspension systems. Larger positive and negative chambers and adjustable volume spacers let riders fine-tune spring curves and progression with ease. Setup is simple, while the low-friction air spring and proven TTX damping ensure smooth sensitivity, control, and confidence on any terrain.

Built for durability, it features increased bushing overlap, side-load protection, and advanced sealing and lubrication to stay consistent on long rides. Plush and predictable, it maintains momentum over roots and rocks, absorbs big hits, and offers race-proven tuning options to match any rider, bike, or style.

Features

• Highly adjustable TTX compression valve technology
• Double-can design with larger air volume in both positive and negative chamber
• Adjustable HSC (high-speed compression) and LSC (low-speed compression)
• Adjustable rebound damping
• Climb mode
• Race-proven setting bank, to suit any type of riding or linkage design
• Air spring volume spacers included as standard in the shock kit
• Available in standard metric lengths
• 210 x 55/52.5/50/47.5 mm
• Maximum air pressure up to 325 PSI
• Delivered with the longest stroke, plus the additional parts required to alter the stroke
